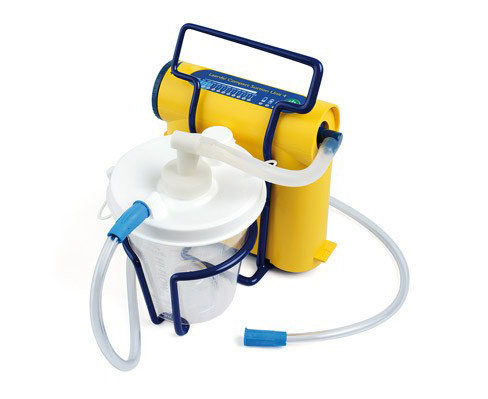

Laerdal’s LCSU 4 suction unit combines rugged design with lightweight portability, an essential tool for every first responder.

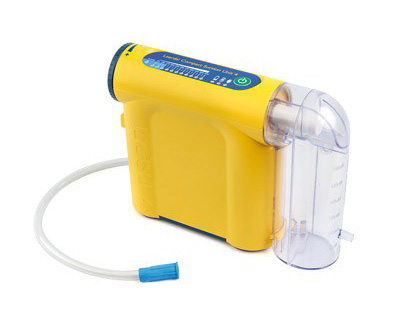

Unique Click-in-Place Canister

No vacuum tube between the canister and the suction pump is necessary - just click-in-place and go.  A clean and efficient solution, a used canister can be replaced quickly with a new one when suctioning is completed. The canister is sealed, with an internal filter. The filter automatically stops suction/flow when the canister is full or the filter becomes saturated if the unit tips onto its side during use. Once wet the filter forms a gel which prevents ingress of fluid into the pump.

Features

• One-hand-grip design
• Small and lightweight
• Click-in-place 300 ml canister, no vacuum tube needed
• 800 ml canister option when extra volume is needed
• Disposable canister systems
• Easy to convert between 300 and 800 ml canister version
• Internal integrated filter systems for all canisters
• High efficiency filter kit (for 800 ml solution)
• HEPA rated bacterial filter
• Latex free
• Big vacuum regulator dial, with “clicking sound”
• LED display for use day or night
• Battery level indicator
• Children vacuum range area (marked in blue) on the control panel
• Arrows pointing the vacuum directions
• Wire Stand for stability (for both versions)
• High density carry bags
• No-tools-necessary field changeable battery
• Rechargeable Battery, NiMH 12 volt 1.6 Ah.
• Battery run time: Approximately 45 minutes (free flow)
• AC/DC Adapter Charger (100-240 V)
• External Battery Charger
• 12V DC Power-cord for connection to vehicle connection
• 2 year limited warrenty (excluding the canisters, tubing systems and battery. Battery = 90 days)
• Multi languange Directions for Use (19 languages)
• CE marked - This product is in compliance with the essential requirements of Council Directive 93/42/EEC Medical Device Directive, as amended by Council Directive 2007/47/EC, class IIa
